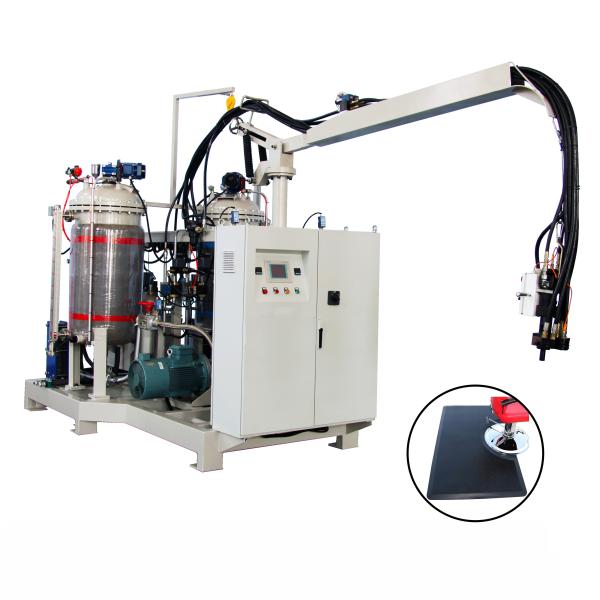

Standing Soft Polyurethane Foam Anti Fatigue Mats Making Machine
High Pressure PU Foaming Machine
Equipment main technical characteristics:
1. Material injection mixing head can freely move forward and
backward, left and right, up and down;
2. Pressure needle valves of black and white materials locked after
balanced to avoid pressure difference
3. Magnetic coupler adopts high-tech permanent magnet control, no
leakage and temperature rising
4. Automatic gun cleaning after injection
5. Material injecting procedure provides 100 work stations, weight
can be set directly to meet the production of multi-products
6. Mixing head adopts double proximity switch control, which can
realize precise material injection.
7. Automatic switch from frequency converter soft start to high and
low frequency, low-carbon , energy saving, environmental
protection, greatly reduce the energy consumption
8. Full digital, modular integration control all process, accurate,
safe, intuitive, intelligent and humanization
Technical Parameter:
| No. | Item | Technical Parameter |
| 1 | Foam application | PU(Polyurethane) |
| 2 | Raw material viscosity(22℃) | POL～2500mPas ISO ～1000mPas |
| 3 | Injection pressure | 10～20Mpa (adjustable) |
| 4 | Injection Output (mixing ratio 1:1) | 70-350g/s |
| 5 | Mixing ratio range | 1:3～3:1(adjustable) |
| 6 | njection time | 0.5～99.99S(correct to 0.01S) |
| 7 | Material temperature control error | ±2℃ |
| 8 | Repeated injection accuracy | ±1% |
| 9 | Mixing head | Homemade, four oil hoses, double oil cylinders |
| 10 | Hydraulic system | Output 10L/min System pressure 10～20MPa |
| 11 | Tank volume | 280L |
| 12 | POL metering pump | Guoyou A2VK-12 |
| 13 | ISO metering pump | Guoyou A2VK-06 |
| 1 | Compressed air required | Dry, oil free P: 0.7Mpa Q: 600NL/min Prepare by Customer |
| 15 | Temperature control system | 5HP |
| 16 | Input power | Three-phase five-wire,380V 50HZ |
Details of Floor Mat Molding Machine:
High and low pressure switching unit: High/low pressure cyclical
switch unit control the high/low cyclical switch of the two
components, to enable components to form low energy circle and
extend machine’s service life. The equipment has 4 sets of high and
low pressure switching unit for sharing.
Self-cleaning filter: Scraper type self-cleaning filter which
consists of stator, rotor, scraper, keeps materials unblocked and
filtered out in the loop. The hand wheel should be rotated on a
regular basis, and dirt discharged through ball valve at the
bottom.
Mixing head: Adopting self-cleaning L type mixing head, adjustable
needle type nozzle, V-shape spraying orifice, high pressure
collision mixing principle, which ensure are fully mixing of
components.
Application of polyurethane foam injection machine:
Anti-fatigue mat reduces fatigue when standing, perfect for
kitchens or standing desks
Cushiony foam layer conforms to the contours of your feet
Stain- and abrasion-resistant surface; easy to clean
Non-curling edges so you won't trip. Non-slip base so the mat stays
in one place
