11KW Polyurethane PU 12m Bus Seat Making Machine

Ask Lasest Price
Brand Name :	YONGJIA
Model Number :	Car Seat Production Line
Certification :	CE, ISO9001
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Supply Ability :	1000 Set/Sets per Month pu baby seat making machine polyurethane car seat production
Delivery Time :	45-60 days

Add to Cart

Product Details
Company Profile

11KW Polyurethane PU 12m Bus Seat Making Machine

Automated Polyurethane PU Car Bus Seat Foaming Production Line

Introduction:

Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclsively adopted); single button operation for convenient operation; switching to a different density or color at any time; easy to maintain and operate.

Control: Microcomputer PLC control; TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm devices. Imported frequency converter (PLC) can control the proportion of 8 different products.

PU machine	High pressure machine, 4 comp. mixhead system
Production method	Continuous moving type by turn table
Robot	Capacity 165kg
PU injection	1) Automatic pouring into open mould by industrial Robot 2) Manual pouring by worker
Mould carrier type	1) Open and close by hydraulic 2) Open and close by Guide steel bar
Mould locking and unlocking	Auto. locking & unlocking by air unit
Mould carrier	4~24 carriers
Line size	Approx. 4~12m(D) x 5m(H)
Line speed	Approx. 100~200mm/ sec, changeable type
The shot cycle time	Approx. 10~15 sec
Curing time	Approx. 4min
Heating unit	4 kw/h (2carrier/ one heating unit), Hot water by electric heating
Seat weight	Approx. Min 310g~ Max 3,200g
Seat consists	Front cushion and back Rear cushion and back

Product application:
This production line is used to produce all type of polyurethane seat cushion. For example: car seat cushion, furniture seat cushion, motorcycle seat cushion, bicycle seat cushion, office chair, ect.

Product component:
This equipment includes one pu foaming machine(can be low or high pressure foam machine) and one production line.It can be customized according to the products which the users need to produce.

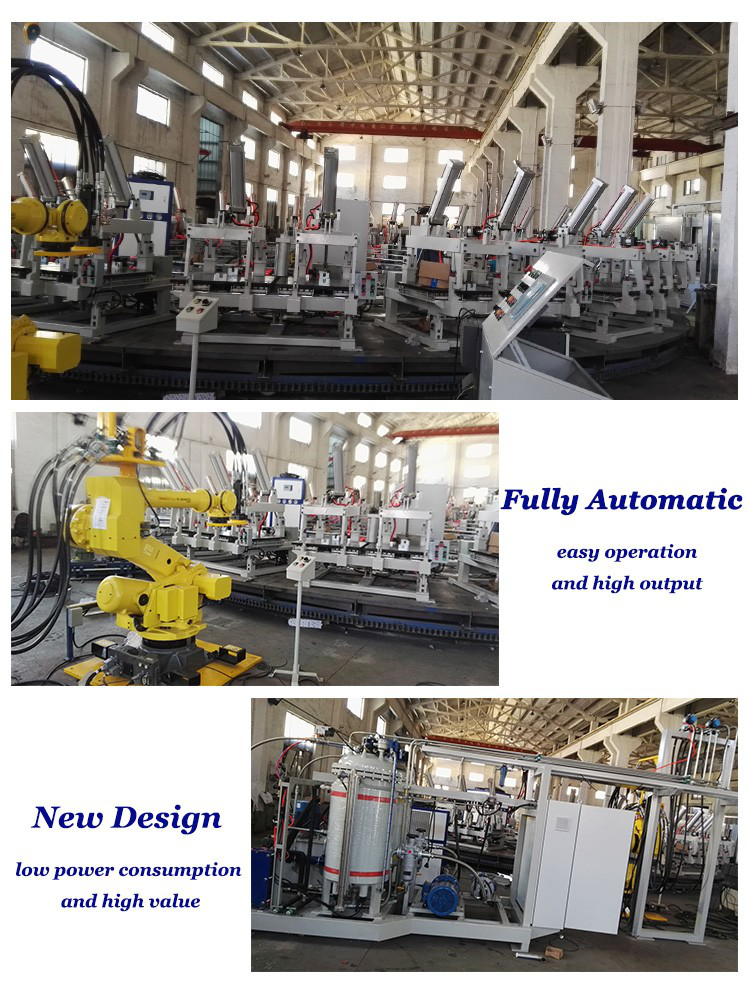

11KW Polyurethane PU 12m Bus Seat Making Machine

Mold And Applications:

This is one set of molded pu foaming production line, it can produce different types of sponges products. Its sponges products(high-resilient and viscoelastic) are mainly for high and medium level markets. For example, memory pillow,mattress, bus and car seat mat, bicycle and motorcycle seat mat, assembly chair, office chair, sofa and other one-time molded sponges.

Our Factory:

Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).

Our Team:

We have professional team of mechanical engineer, chemical engineer, process engineer, etc, all of them have more than 10 years experience in PU foam filed. Also, we have special sales team, they are young but hard-working and experienced. We can meet any your requirements of the PU foam product, pu mold and PU foam machines.
