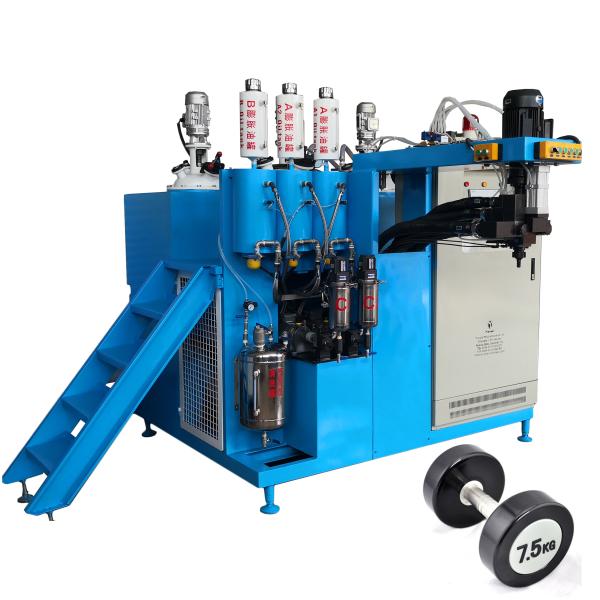

PU Dumbbell Shape Wheel 30L Polyurethane Casting Machine

Polyurethane Elastomer Machine For PU Dumbbell Shape Wheel Special PU Profile

PU Elastomer Casting Machine Introduction:

PU elastomer casting machine is used to produce castable polyurethane elastomers with MOCA or BDO as chain extenders. PU elastomer casting machine is suitable for manufacturing various kinds of CPUs such as seals, grinding wheels, rollers, screens, impellers, OA machines, wheel pulleys, buffers, etc. product.

No.	Item	Technical Parameter
1	Injection Pressure	0.1-0.6Mpa
2	Injection flow rate	50-130g/s 3-8Kg/min
3	Mixing ratio range	100:6-18(adjustable)
4	Injection time	0.5～99.99S (correct to 0.01S)
5	Temperature control error	±2℃
6	Repeated injection precision	±1%
7	Mixing head	Around 5000rpm (4600~6200rpm,adjustable), forced dynamic mixing
8	Tank volume	220L/30L
	A maximum working temperature	70~110℃
	B maximum working temperature	110~130℃
9	Cleaning tank	20L 304# stainless steel
10	Metering pump	JR50/JR50/JR9
	A1 A2 Metering pump displacement	50CC/r
	B Metering pump displacement	6CC/r
	A1-A2-B-C1-C2 PUMPS MAXIMUM SPEED	150RPM
	A1 A2 agitator speed	23RPM
11	Compressed air requirement	Dry, oil free P:0.6-0.8MPa Q:600L/min(Customer-owned)
12	Vacuum requirement	P:6X10^-2Pa(6 BAR) Speed of exhaust:15L/S
13	Temperature control system	Heating: 18～24KW
14	Input power	Three-phrase five-wire,380V 50HZ
15	Heating power	TANK A1/A2: 4.6KW TANK B: 7.2KW
16	Total power	34KW
17	Working Temperature	Room temperature to 200℃
18	Swing arm	Fixed arm, 1 meter
19	Volume	About 230020002300(mm)
20	Color (selectable)	Deep blue
21	Weight	2000Kg

Product Features of PU Elastomer Casting Machine:

High temperature resistant low speed high precision metering pump,accurate measurement,random error within±0.5%.

Material output adjusted by frequency converter with frequency conversion motor,high pressure and precision,simple and rapid rapid ratio control.

High performance mixing device,adjustable pressure,accurate material output synchronization and even mix;New type mechanical seal structure avoids reflux problem.

High-efficiency vacuum device with special mixing head ensures product no bubbles.

Adopting electromagnetic heating method to heat transfer oil,efficient and energy saving;Multi-point temp.control system ensures stable temperature,random error<±2°C.

Adopting PLC and touch screen man-machine interface to control pouring,automatic cleaning flush and air purge.stable
performance.high operability,which can automatically distinguish,diagnose and alarm abnormal situations as well as display abnormal factors.

Application:

Suitable for PU dumbbell.

PU Dumbbell Shape Wheel 30L Polyurethane Casting Machine

Widely used in the production of CUP type PU elastomer items which adopt MOCA or BDO as chain extender,such as CPU wheel,castor,roller,sieve plate,impeller,seal ring,shock absorber,dumbell and so on.
