10" Touch Screen 8.5kW Shoe Injection Moulding Machine

Ask Lasest Price
Brand Name :	YONGJIA
Model Number :	Shoe Making Machine
Certification :	ce
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Supply Ability :	2 Set/Sets per Month polyurethane pu soft foam injection molding machine for shoe
Delivery Time :	45-60 days

Add to Cart

Product Details
Company Profile

10" Touch Screen 8.5kW Shoe Injection Moulding Machine

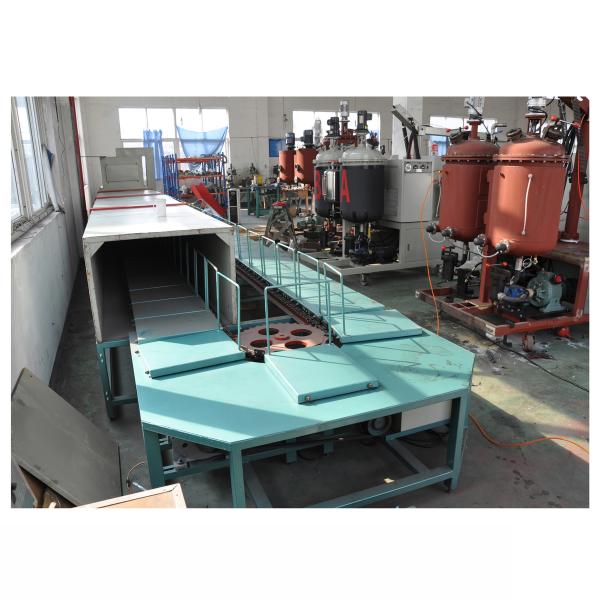

Automatic Polyurethane PU Pouring Shoe Sole Making Machine

Introduction:

Annular automatic insole and sole production line is an ideal equipment based on our company's independent research and development, which can save labor cost, improve production efficiency and automatic degree, also possess the characteristics of stable performance, accurate metering, high precision positioning, automatic position identifying.

Bucket	Metering Pump	Metering Pump Motor Power	Spit Out Quality	Total Power
A.120L	JR9	0.75kw	10-40g/s	8.5kw
B.120L	JR3.6	0.55kw
S.2L	JR0.3	0.2kw

Technical parameters of pu shoe production line:

1. Annular line length 19000, drive motor power 3 kw/GP, frequency control;
2. Station 60;
3. Oven length 14000, heating power 28kw, inner motor power 7 * 1.5 kw;
4. Mold opening and clamping adopt servo motor 1.5kw,, reducer PF - 115-32;
5. The panasonic PLC control, 10 inch touch screen;
6. Manufacturing process: injection mold release - hand set pieces - clamping - open die - casting mould - the - - cure - lock -molding - artificial pick-up - clean up mold

Host equipment of pu shoe production line:

Product component:

This equipment includes one pu foaming machine(can be low or high pressure foam machine) and one production line.It can be customized according to the products which the users need to produce.

Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclsively adopted); single button operation for convenient operation; switching to a different density or color at any time; easy to maintain and operate.

Control: Microcomputer PLC control; TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm devices. Imported frequency converter (PLC) can control the proportion of 8 different products.

This is one set of molded pu foaming production line, it can produce different types of sponges products. Its sponges
products(high-resilient and viscoelastic) are mainly for high and medium level markets. For example, memory pillow, mattress, bus and car seat mat, bicycle and motorcycle seat mat, assembly chair, office chair, sofa and other one-time molded sponges.

Application:

Packing & Delivery:

10" Touch Screen 8.5kW Shoe Injection Moulding Machine

Our Factory:

Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).
