    9kW High Pressure PU Foaming Machine

    Ask Lasest Price
    Brand Name : Yongjia
    Certification : CE
    Supply Ability : 500 Set/Sets per Month pu culture stone making machine
    Price : Negotiable
    Model Number : High Pressure Foam Machine
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

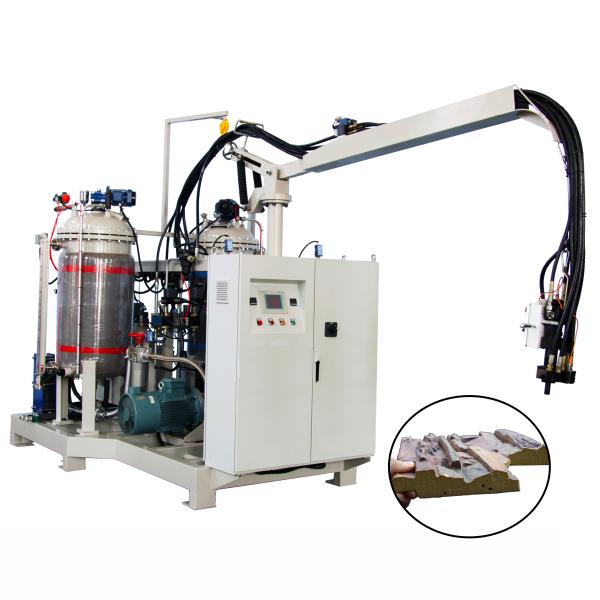

    9kW High Pressure PU Foaming Machine

    PU Polyurethane Foam Injection High Pressure Machine For PU Culture Stone Making
    9kW High Pressure PU Foaming Machine
    Product Description:

    Polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer's request various pours out of the machine.
    This polyurethane foaming machine uses two raw materials, polyurethane and Isocyanate. This type of PU foam machine can be used in various industries, such as daily necessities, automobile decoration, medical equipment, sports industry, leather footwear, packaging industry, furniture industry, military industry.


    No.ItemTechnical parameter
    1Foam applicationWood Imitation Foam
    2Raw material viscosity(22℃)

    POLY ~2500MPas

    ISO ~1000MPas

    3Injection pressure10-20Mpa(adjustable)
    4Output (mixing ratio 1:1)270~1300g/min
    5Mixing ratio range1:5~5:1(adjustable)
    6Injection time0.5~99.99S(correct to 0.01S)
    7Material temperature controlling error±2℃
    8Repeat injection accuracy±1%
    9Mixing headFour oil house,double oil cylinder
    10Hydraulic system

    Output: 10L/min

    System pressure 10~20MPa

    11Tank volume500L
    15Temperature control systemHeat: 2×9Kw
    16Input powerThree-phase five-wire 380V

    Product Features of High Pressure PU Machine:


    1. German original Rexroth high precision inclined axis axial piston variable pump (A7VK series), accurate measurement, stable operation;
    2. Italian original magnetic coupling, high-tech permanent magnet control, no temperature rise, no leakage;
    3. German original KRACHT flowmeter; closed-loop control is implemented, the accuracy is high, the system is stable, and the accuracy is +0.1-0.5%;
    4. Korean original high-precision self-cleaning high-pressure mixing head, high-pressure jet, impact mixing, high mixing uniformity, no residual material after use, no cleaning, no maintenance, and high-strength material manufacturing;
    5. The main components of the hydraulic station are imported original parts, equipped with original German STAUFF hydraulic pumps;.
    6. The material pipe adopts American Parker high pressure pipe, which is resistant to high pressure and corrosion, safe and reliable;
    7. Adopting plate-type cold heat exchanger, high heat exchange efficiency, compact structure, to ensure constant temperature of raw materials, to ensure product quality;
    8. German Siemens PLC. Human-machine interface, fully digital, modular integrated control of all technological processes, accurate, safe, intuitive, intelligent and humane.

    Applications:
    PU cultural stone not only has the characteristics of cultural stone, but more importantly, it uses good polyurethane insulation material as the main material, and installs and uses PU cultural stone and PU cultural brick. In addition to having beautiful decoration, it also has an excellent thermal insulation function. The house decorated with PU cultural stone is more than 80% energy-saving than the house decorated with ordinary brick and cultural stone, which makes us convenient and greatly saves energy costs in the following decades.

    Visitors and Exhibitions:

    We participated in many exhibitions of polyurethane raw materials, polyurethane foam products and polyurethane PU foam machines. Our products left a very good impression to everyone at the show, some customers even placed orders on the spot.


    9kW High Pressure PU Foaming Machine

    Certificate

    9kW High Pressure PU Foaming Machine
    FAQ

    1. If I need to develop a special PU raw material formula solution based on my product, can you provide it?

    Yes, we can. We have technical team of chemical engineers and process engineers, all of whom have more than 20 years of experience in PU industry. We can independently develop raw material soluation like polyurethane rigid foam, polyurethane flexible foam, polyurethane integral skin foam and polyurea to meet customer' s requirements.

    2. How long is your polyurethane foam casting machine warranty?

    1 year. Within one yea, if it is not man-made damage, we will provide free replacement parts, but the shipping cost needs to be paied by the customer.

    3. How to solve the polyurethane foaming machine failure?

    For pu spraying machine: If there are quality problems with accessories during the one-year warranty period, we can provide replacement parts for free. If there are operations or other problems, you can send photos or videos to us, we will consult our engineers to help you solve the problem.

    For high/low pressure foam dispensing machine, elastomer casting machine and other production line: our machine all have remote maintenance and diagnosis function. You can also send us pictures or videos, our engineers can help to solve the problems via pictures and videos.

    4. What if I don't install it after I get the polyurethane pouring machine? Do you offer installation services?

    Yes, we supply video technical support. If your company has engineer, you can come to our factory, we will provide field installation, commissioning and training. Of course, our engineers are available to service machinery overseas.


    5. Can I be your agent in our own country?

    We already have some agents of pu spray machine, high/low pressure foam injection machine, pu elastomer casting machine around word like Pakistan, Iran, Malaysia, Algeria and so on, if you are interested, you can send your intentions with your company's information and personal contact details, then we will email you our requirements to check if we can cooperate.
