Chair Making 2.3m Polyurethane Foaming Equipment

Ask Lasest Price
Brand Name :	Yongjia
Certification :	CE
Supply Ability :	5000 Set/Sets per Month Low pressure polyurethane pu ISF foam making injection machine
Price :	Negotiable
Model Number :	Low Pressure Foam Machine

Add to Cart

Product Details
Company Profile

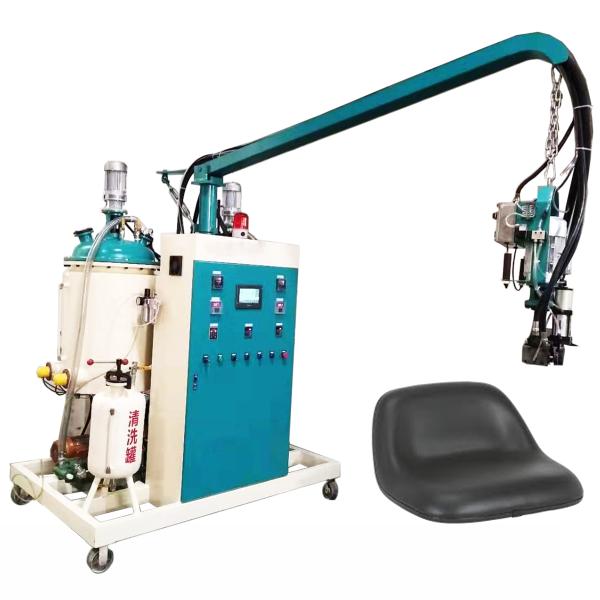

Chair Making 2.3m Polyurethane Foaming Equipment

PU Polyurethane Casting Low Pressure Machine For Integral Skin Urethane Foam Chair Making

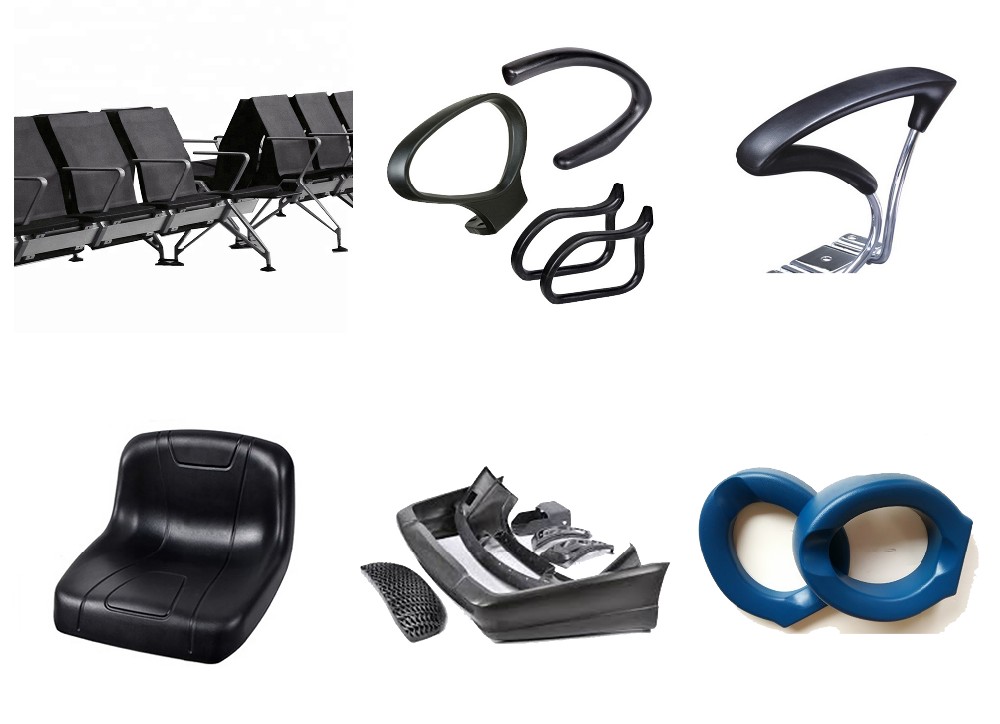

Application:

Polyurethane integral skin foams find wide application as structural materials.Integral skin foam is used in a number of market
applications,including automotive interiors,furniture components,household leisure goods and health care products,such as wheelchairs.

Product Description:

Polyurethane low-pressure foaming machine is widely used in multi-mode continuous production of rigid and semi-rigid polyurethane products, such as: petrochemical equipment, directly buried pipelines, cold storage, water tanks, meters and other thermal insulation and sound insulation equipment craft products.

No.	Item	Technical parameter
1	Foam application	Integral Skin Foam Seat
2	Raw material viscosity(22℃)	POL ～3000CPS ISO ～1000MPas
3	Injection flow rate	26-104g/s
4	Mixing ratio range	100:28～48
5	Mixing head	2800-5000rpm, forced dynamic mixing
6	Tank Volume	120L
7	Input power	Three-phase five-wire 380V 50HZ
8	Rated power	About 9KW
9	Swing arm	Rotatable 90°swing arm, 2.3m (length customizable)
10	Volume	4100(L)1300(W)2300(H)mm, swing arm included
11	Color( customizable)	Cream-colored/orange/deep sea blue
12	Weight	About 1000Kg

Features of Low Pressure Foam Machine:

1. The pouring amount of the pouring machine can be adjusted from 0 to the maximum pouring amount, and the adjustment accuracy is 1%.
2. This product has a temperature control system that can automatically stop heating when the specified temperature is reached, and its control accuracy can reach 1%.
3. The machine has solvent cleaning and water and air purging systems.
4. This machine has an automatic feeding device, which can feed at any time. Both A and B tanks can hold 120 kg of liquid. The material barrel is equipped with a water jacket, which uses the water temperature to heat or cool the material liquid. Each barrel has a water pipe and a material pipe.
5. This machine adopts a cut-off door to adjust the ratio of A and B material to liquid, the ratio accuracy can reach 1%.
6. The customer prepares an air compressor, and the pressure is adjusted to 0.8-0.9Mpa to use this equipment for production.
7. Time control system, the control time of this machine can be set between 0-99.9 seconds, and the accuracy can reach 1%.

Filtering tank:

Material in the tank flow to the filter tank Φ100X200 by discharge valve, after filtering, flow to the metering pump. Sealing flat cover on the

tank, inner tank with a filter net, tank body with a feeding and discharge port, there is a discharge ball valve below the tank.

Metering:

High precision JR series gear metering pump (pressure-tolerant 4MPa,speed 26～130r.p.m ), make sure the metering and ration accurate

and stable.

Cleaning Tank:

Stainless steel material, effective volume 20L. YZ type Bourdon-tube manometer,load limit 1.0Mpa. 110 feed inlet flange gland, 1/4" stainless steel ball valve. PTFE tube liquid level gauge, outlet (filter attached) and discharge port on bottom.

Chair Making 2.3m Polyurethane Foaming Equipment

Packing & Delivery:

Packaging
Size	410012502300(mm)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: 260015002600). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Our Team:

We have professional team of mechanical engineer, chemical engineer, process engineer, etc, all of them have more than 10 years experience in PU foam filed. Also, we have special sales team, they are young but hard-working and experienced. We can meet any your requirements of the PU foam product, pu mold and PU foam machines.
