4100mm1250mm2300mm 120L Low Pressure PU Foaming Machine

Ask Lasest Price
Brand Name :	Yongjia
Certification :	CE
Supply Ability :	500 Set/Sets per Month PU polyurethane low pressure foam mixing molding machine
Price :	Negotiable
Model Number :	Low Pressure Foam Machine
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Delivery Time :	45-60 days

Add to Cart

Product Details
Company Profile

4100mm1250mm2300mm 120L Low Pressure PU Foaming Machine

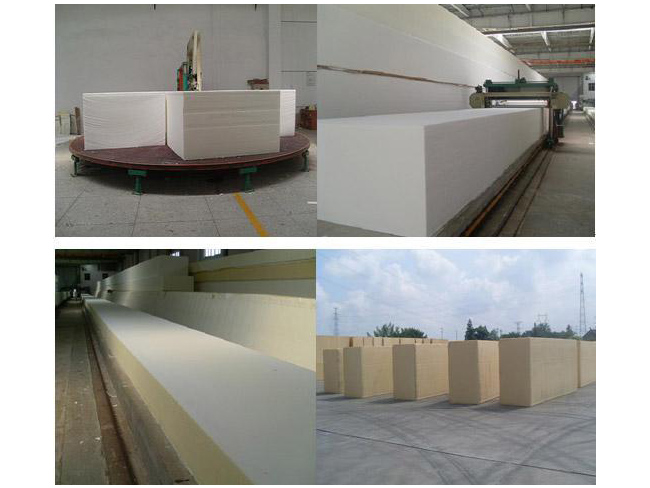

PU Polyurethane Low Pressure Foam Mixing Molding Machine for Sheet Foam

Application:

Polyurethane foam has been a favorite material of pattern builders for years. With this 6 ft. x 4 ft. x 2 ft. block, you can cut, carve, sand, and sculpt nearly any shape without the hassle of gluing numerous sheets together or pouring your own block.

Although this foam can be easily CNC machined, it should not be hot-wired. Professional results can be achieved by using a variety of hand tools to saw, carve, plane, and smooth out your shape.

Product Description:

Polyurethane low-pressure foaming machine is widely used in multi-mode continuous production of rigid and semi-rigid polyurethane products, such as: petrochemical equipment, directly buried pipelines, cold storage, water tanks, meters and other thermal insulation and sound insulation equipment craft products.

No.	Item	Technical parameter
1	Foam application	Flexible Foam Block Sheet
2	Raw material viscosity(22℃)	POL ～3000CPS ISO ～1000MPas
3	Injection flow rate	155.8-623.3g/s
4	Mixing ratio range	100:28～50
5	Mixing head	2800-5000rpm, forced dynamic mixing
6	Tank Volume	120L
7	Input power	Three-phase five-wire 380V 50HZ
8	Rated power	About 13KW
9	Swing arm	Rotatable 90°swing arm, 2.3m (length customizable)
10	Volume	4100(L)1300(W)2300(H)mm, swing arm included
11	Color( customizable)	Cream-colored/orange/deep sea blue
12	Weight	About 1000Kg

Features of Low Pressure Foam Machine:

1. Accurate measurement: high-precision low-speed gear pump, error ≤0.5%.
2. Uniform mixing: Multi-tooth high-shear mixing head is used, with reliable performance.
3. Pouring head: special mechanical seal is used to prevent air leakage and material pouring.
4. The material temperature is stable: the material tank adopts its own heating temperature control system, and the temperature control is determined, and the error is ≤2℃
5. The whole machine adopts 7-inch touch screen and PLC module control, which can be poured regularly and quantitatively and can be automatically cleaned by air flushing.

Our Factory:

Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).

4100mm*1250mm*2300mm 120L Low Pressure PU Foaming Machine

Feedbacks:

Good Feedback from our Australian client who buy a low pressure PU polyurethane foaming machine.

Real comment for our PU polyurethane flexible foam shoe sole and insole making production line.
