66g/s Low Pressure PU Foaming Machine

Ask Lasest Price
Brand Name :	Yongjia
Certification :	CE
Supply Ability :	5000 Set/Sets per Month Low pressure polyurethane pu ISF foam making injection machine
Price :	Negotiable
Model Number :	Low Pressure Foam Machine
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Delivery Time :	45-60 days

Add to Cart

Product Details
Company Profile

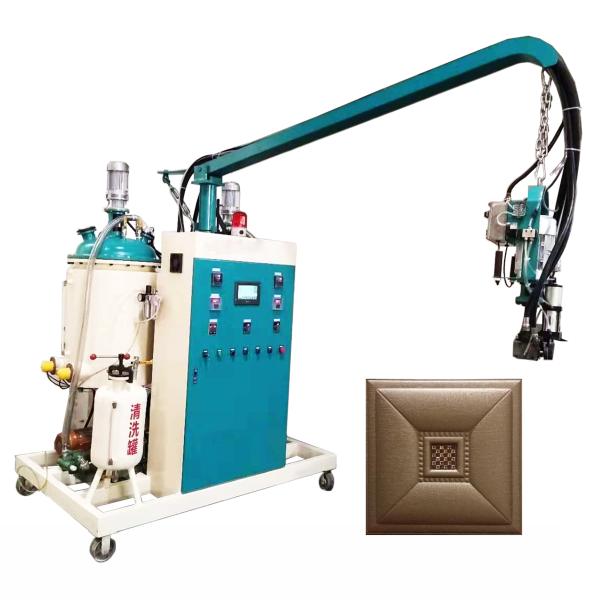

66g/s Low Pressure PU Foaming Machine

Polyurethane PU Foam Pouring Low Pressure Machine For 3D Wall Panel Making

Product Description:

Polyurethane low-pressure foaming machine is widely used in multi-mode continuous production of rigid and semi-rigid polyurethane products, such as: petrochemical equipment, directly buried pipelines, cold storage, water tanks, meters and other thermal insulation and sound insulation equipment craft products.

No.	Item	Technical parameter
1	Foam application	Flexible Foam 3D Wall Panel
2	Raw material viscosity(22℃)	POL ～3000CPS ISO ～1000MPas
3	Injection flow rate	16.5-66g/s
4	Mixing ratio range	100:28～48
5	Mixing head	2800-5000rpm, forced dynamic mixing
6	Tank Volume	120L
7	Input power	Three-phase five-wire 380V 50HZ
8	Rated power	About 9KW
9	Swing arm	Rotatable 90°swing arm, 2.3m (length customizable)
10	Volume	4100(L)1300(W)2300(H)mm, swing arm included
11	Color( customizable)	Cream-colored/orange/deep sea blue
12	Weight	About 1000Kg

Features of Low Pressure Foam Machine:

1. The pouring amount of the pouring machine can be adjusted from 0 to the maximum pouring amount, and the adjustment accuracy is 1%.
2. This product has a temperature control system that can automatically stop heating when the specified temperature is reached, and its control accuracy can reach 1%.
3. The machine has solvent cleaning and water and air purging systems.
4. This machine has an automatic feeding device, which can feed at any time. Both A and B tanks can hold 120 kg of liquid. The barrel is equipped with a water jacket, which uses water temperature to heat or cool the material liquid. Each barrel has a water sight tube and a material sight tube.
5. This machine adopts a cut-off door to adjust the ratio of A and B material to liquid, and the ratio accuracy can reach 1%.
6. The customer prepares an air compressor, and the pressure is adjusted to 0.8-0.9Mpa to use this equipment for production.
7. Time control system, the control time of this machine can be set between 0-99.9 seconds, and the accuracy can reach 1%.

Main components:

Material system consists of material tank,filter tank, metering pump, material pipe, pouring head, cleaning tank.

1-Material Tank:

Double interlining material heat tank with insulation outer layer, heart rapidly, low energy consumption. Liner, upper and low head all use stainless 304 material, upper head is precision machinery sealing equipped to make sure the air tight agitation.

2-Filter tank:

Material in the tank flow to the filter tank Φ100X200 by discharge valve, flow to the metering pump after filtering. Sealing flat cover on the tank, inner tank with a filter net, tank body with a feeding and discharge port, there is a discharge ball valve below the tank.

3. Metering pump:

High precision CB-B series gear metering pump (pressure-tolerant 4MPa), make sure the metering and ration accurate and stable.

4-Material pipe:

Raw materials are delivered in pipeline to mixing head. A material pipe adopts high strength anticorrosion PTFE hose, which can effectively avoid the chemical reaction with raw material and influence its quality. B material pipe adopts high strength rubber hose, pressure resistant 8MPa.

5-Mixing device (pouring head):

Adopting floating mechanical seal device, high shearing spiral mixing head to make sure the even mixing within required adjusting range of casting mixing ratio.

6-Cleaning Tank:

110 feed inlet flange gland, 1/4" stainless steel ball valve. PTFE tube liquid level gauge, outlet (filter attached) and discharge port on bottom.

Application:

With the improvement of living standards, people's requirements for wall decoration are getting higher and higher, and they are developing in the direction of fashion, safety, environmental protection, health, etc.-while the leather-carved soft background wall is beautiful, sound-absorbing, heat-insulating, and healthy. It happens to meet these needs. Compared with wallpaper wall covering, the soft bag has soft texture and soft color, which can soften the overall space atmosphere, and its excellent three-dimensional sense can also enhance the taste of the home.

Packing & Delivery:

1. Stable wooden package protects machine from strike and damage.
2. Wound plastic film keeps machine out of damp and corrosion.
3. Fumigation-free package helps the smooth customs clearance.
4. The big size machine will be fixed in container without package.

Our Factory:

Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).

Our Team:

We have professional team of mechanical engineer, chemical engineer, process engineer, etc, all of them have more than 10 years experience in PU foam filed. Also, we have special sales team, they are young but hard-working and experienced. We can meet any your requirements of the PU foam product, pu mold and PU foam machines.

Our Service:

1. Professional and patient consulting service to help you find the suitable solution.
2. Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3. Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4. Free training in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
5. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6. For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that .
8. We give an accessory box for free.
9. We offer development solutions for raw material formulations.
10. If you need to visit the factory, we will arrange for personnel to pick up the airport.
