Room Insulation Polyurethane Portable Spray Foam Machine

Ask Lasest Price
Brand Name :	Yongjia
Model Number :	JYYJ-HN35
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Supply Ability :	1000 set per month
Delivery Time :	7-14 days

Add to Cart

Product Details
Company Profile

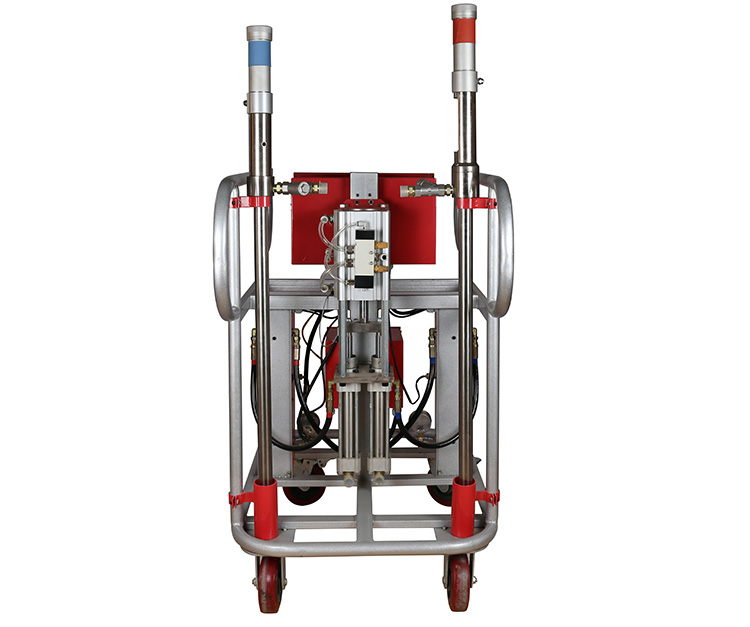

Room Insulation Polyurethane Portable Spray Foam Machine

Portable Spray Foam Machine Room Insulation Polyurethane Spray Foam Machine

Product Description of pu spray foam machine:

JYYJ-HN35 is a professional, cost-effective polyurethane spray and injection or polyurea coating machine. It is equipped with a specially designed horizontal booster pump, which not only has small fluctuations in working pressure, but also has less wearing parts and is easy to maintain.

SPECIFICATIONS FOR JYYJ-HN35 PU Spray Machine
Parameter	Power source	1- phase 220V 45A
	Heating power	17KW
	Driven mode	Horizontal hydraulic
	Air source	0.5-0.8 MPa ≥0.9m³/min
	Raw output	12 kg/min
	Maximum output pressure	25MPA
	Poly and ISO material output ratio	1:1
Spare parts	Spray gun	1 Set
	Heating hose	15 meters
	Spray gun connector	2 m
	Accessories box	1
	Instruction book	1

Main Features of polyurethane foam sprayer:

1. Panel with operation tips is easy to set up,
2. The horizontal booster pump adopts a coaxial mechanism and has the function of two-way supercharging. The working pressure fluctuation value is small, and the replacement of the wearing parts is simple,
3. The high-speed circulating lubricating fluid in the anti-curing lubrication cylinder can quickly take away the leakage of materials, and the ISO pump shaft is always immersed in the lubricating fluid to avoid crystallization,
4. Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,
5. The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc.
6. The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
7. High-precision pressure gauges are available in MPA and PSI to meet the needs of different customers,
8. Equipped with an action counter to accurately calculate the amount of raw materials,
9. The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.

Related Products

Iteam/TDS	JYYJ-3D	JYYJ-Q400	JYYJ-H600
Raw material	polyurethane	polyurea polyurethane	polyurea polyurethane
Features	1. with metering control 2. Feed amount adjusted, time-set & quantity-set 3. can be used both for spraying and casting, with higher production efficiency	1. Digital counting system( display the consumption of raw materials in real time ) 2.More light and easy to carry 3.Using 160 cylinder 4. both polyurethane and polyurea can be used	1.can be used both for spraying and casting with higher production efficiency 2.Hydraulic driven is more stable 3. both polyurethane and polyurea can be used
POWER SOURCE	1 phase 220V 50HZ	3-phase 4-wires 380V 50HZ	3-phase 4-wires 380V 50HZ
HEATING POWER (KW)	7.5	18	22
AIR SOURCE (min)	0.5~0.8Mpa≥0.9m3	0.5~0.8Mpa≥1m3	0.5~0.8Mpa≥0.5m3
OUTPUT(kg/min)	2~12	2~12	2~12
MAXIMUM OUTPUT (Mpa)	11	22	24
Matrial A:B=	1;1	1;1	1;1
spray gun:(set)	1	1	1
Feeding pump:	2	2	2
Barrel connector:	2 sets heating	2 sets heating	2 sets heating
Heating pipe:(m)	15-60	15-120	15-120
Spray gun connector:(m)	2	2	2
Accessories box:	1	1	1
Instruction book	1	1	1
Digital counting system		√	√
Hydraulic driven			√
pneumatic driven	√	√

Applications

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.

2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.
