Polyurethane Agricultural Substrate Forming Machine Low Pressure PU Foaming Machine

Ask Lasest Price
Brand Name :	Yongjia
Model Number :	Low Pressure Foam Machine
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Supply Ability :	50 Set/Sets per Month PU polyurethane low pressure foam mixing molding machine
Delivery Time :	45-60 days

Add to Cart

Product Details
Company Profile

Polyurethane Agricultural Substrate Forming Machine Low Pressure PU Foaming Machine

Polyurethane Agricultural Substrate Forming Machine Low Pressure PU Foaming Machine

Product Description of low pressure foam machine:

Polyurethane foam can be used as a fertilizer carrier. Using its porous properties, it can absorb fertilizer components in the pores and become a good fertilizer. Its sorption capacity is equivalent to the total pore capacity, which is more than 50 times that of polyurethane foam, so the proportion of sorption material is very small, showing great advantages. It also played a role in improving the soil.

No.	Item	Technical Parameter
1	Foam application	Flexible foam
2	raw material viscosity(22℃)	～3000CPS ～1000MPas
3	Injection Output	5-20g/s
4	Mixing ratio range	100:28～48
5	Mixing head	2800-5000rpm, forced dynamic mixing
6	Tank Volume	30L
7	Metering pump	A pump: JR6 Type B Pump: JR3.6 Type
8	Compressed air requirement	dry, oil free P:0.6-0.8MPa Q:600NL/min(Customer-owned)
9	Nitrogen requirement	P:0.05MPa Q:600NL/min(Customer-owned)
10	Temperature control system	heat:2×3.2Kw
11	Input power	three-phrase five-wire,380V 50HZ
12	Rated power	about 8KW
13	swing arm	90°Rotatable swing arm, 0.7m(length customizable)

Polyurethane foam material has the functions of thermal insulation, buffering, insulation, etc. It is widely used in furniture, building materials, refrigeration, transportation and other fields. Nowadays, hydrophilic and water-absorbent polyurethane foam can improve the water absorption and water-retaining function of the foam, improve the soil, and transport fertilizer, so that it is one of the preferred cultivation substrates for vegetables and flowers.

Features of pu injection machine:

1. For sandwich type material bucket, it has good heat preservation

2. The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation was absolutely clear.

3. Head connected with the operation system, easy for operation

4. The adoption of new type mixing head makes the mixing even, with the characteristic of low noise, sturdy and durable.

5. Boom swing length according to the requirement, multi-angle rotation, easy and fast
6. High precision pump lead to measuring accurately
7. Easy for maintenance, operation and repair.
8. Low energy consumption.

Applications of pu foaming machine:

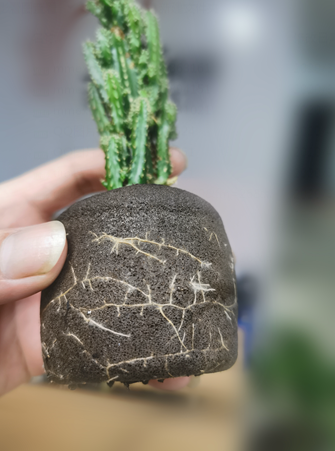

A large number of cuttings of ornamental plants and nursery plants can satisfactorily root in the polyurethane matrix, and in most cases, grow faster than in the ordinary matrix.

The particularly hydrophilic rigid polyurethane foam is suitable as a growth medium for cutting crops. This product is both open-cell and hydrophilic, with a density of 10-15kg / 3. , It is not perishable and does not release compounds harmful to plants.
